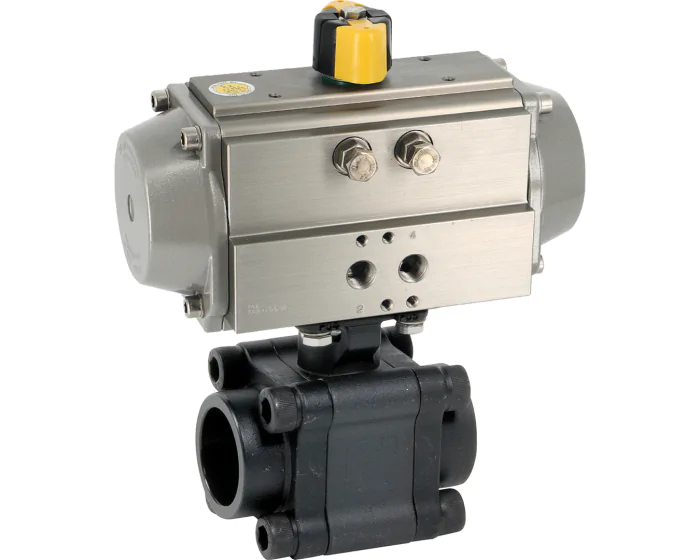

The 702 XS series 3-piece ball valve has a carbon steel body (1.0619), stainless steel ball and PTFE/stainless steel seats. It is actuated with an ALPHAIR pneumatic actuator. PS: 137 bar, TS: 220°C. To be welded SW.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 316 |
| Adjustable limit screws | Yes |
| ATEX compatible | Yes |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 140.0 |
| Body material | Carbon steel A216 WCB (1.0619) |
| ATEX protection mode | Ex c |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | Graphite |
| PS (bar) | 137 |
| Connections | Welding SW |
| Seats | PTFE-Stainless steel |
| Ball material | Stainless steel 316 |
| Surface temperature | TX |
| TS max (°C) | 220 |
| TS min (°C) | -20 |
| Pneumatic actuator type | Double acting |
| Ball valve design | 3-piece body |
| ATEX zone | 1.21.2.22 |
| Warranty period | 1 year |
| CE | Risk category III |
| Range | Industry |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Welding SW Carbon steel A216 WCB (1.0619) Full 3-piece body DN15 - 1/2'' Double acting | 271342017006R | S1001278 |
€201.44
(excl. btw)
|
add to cart |
| Welding SW Carbon steel A216 WCB (1.0619) Full 3-piece body DN15 - 1/2'' Spring return | 271342017106R | S1001279 |
€236.47
(excl. btw)
|
add to cart |
| Welding SW Carbon steel A216 WCB (1.0619) Full 3-piece body DN20 - 3/4'' Double acting | 271343017006R | S1001280 |
€217.21
(excl. btw)
|
add to cart |
| Welding SW Carbon steel A216 WCB (1.0619) Full 3-piece body DN20 - 3/4'' Spring return | 271343017106R | S1001281 |
€252.24
(excl. btw)
|
add to cart |
| Welding SW Carbon steel A216 WCB (1.0619) Full 3-piece body DN25 - 1'' Double acting | 271344017006R | S1001282 |
€281.89
(excl. btw)
|
add to cart |
| Welding SW Carbon steel A216 WCB (1.0619) Full 3-piece body DN25 - 1'' Spring return | 271344017107R | S1001283 |
€332.14
(excl. btw)
|
add to cart |
| Welding SW Carbon steel A216 WCB (1.0619) Full 3-piece body DN32 - 1''1/4 Double acting | 271345017007R | S1001284 |
€292.24
(excl. btw)
|
add to cart |
| Welding SW Carbon steel A216 WCB (1.0619) Full 3-piece body DN32 - 1''1/4 Spring return | 271345017109R | S1001285 |
€423.36
(excl. btw)
|
add to cart |
| Welding SW Carbon steel A216 WCB (1.0619) Full 3-piece body DN40 - 1''1/2 Double acting | 271346017008R | S1001286 |
€362.59
(excl. btw)
|
add to cart |
| Welding SW Carbon steel A216 WCB (1.0619) Full 3-piece body DN40 - 1''1/2 Spring return | 271346017109R | S1001287 |
€450.39
(excl. btw)
|
add to cart |
| Welding SW Carbon steel A216 WCB (1.0619) Full 3-piece body DN50 - 2'' Double acting | 271347017009R | S1001288 |
€500.27
(excl. btw)
|
add to cart |
| Welding SW Carbon steel A216 WCB (1.0619) Full 3-piece body DN50 - 2'' Spring return | 271347017110R | S1001289 |
€618.07
(excl. btw)
|
add to cart |
